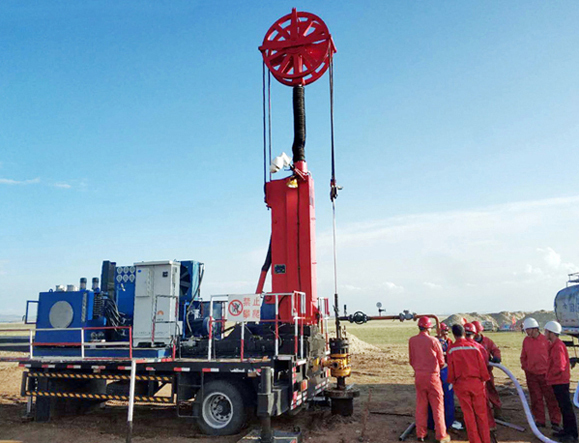

The truck-mounted hydraulic pumping unit is a kind of highly mobile oil production equipment which can be quickly moved, quickly installed and efficiently pumped by us. It is used for the development of new well trial production or long stop well, low production well, interval pumping well and so on. It does not occupy the fixed equipment of pumping unit to realize the efficient development of old Wells.The system has data acquisition, operation monitoring, remote alarm, remote parameter adjustment, remote assistance, fault diagnosis, historical data recording and so on.

Structural Characters:

· According to the requirements of transportability, installation convenience, safe and stable operation performance.The special trailer is designed, and the high strength and high stability supporting structure is designed with the tail of the trailer, which is used as the steel structure foundation under the operation condition of the pumping unit to ensure the stable operation of the pumping unit.

· Deep electro-hydraulic composite intelligent control system. Vehicle-mounted hydraulic pumping unit is equipped with advanced energy storage hydraulic convolution drive technology, and innovatively developed flexible convolution intelligent control algorithm, which is the in-depth integration of electro-hydraulic composite intelligent control technology of the company, and the most complex control system and control algorithm among products marketed.

· IoT technology, truck-mounted pumping unit is connected to the Internet of Things, which enables the equipment to have the ability of remote monitoring, data statistics, remote parameter adjustment and real-time alarm receiving.

Specification:

System power: 37kW

Load (Max): 120kN

Stroke: 3m

Speed: 0-4 SPM

hydraulic cylinder stroke (140/200):  2500mm

Hydraulic system Working pressure: 21MPa

Temperature range: -25℃-45℃

Max. height: 9m
